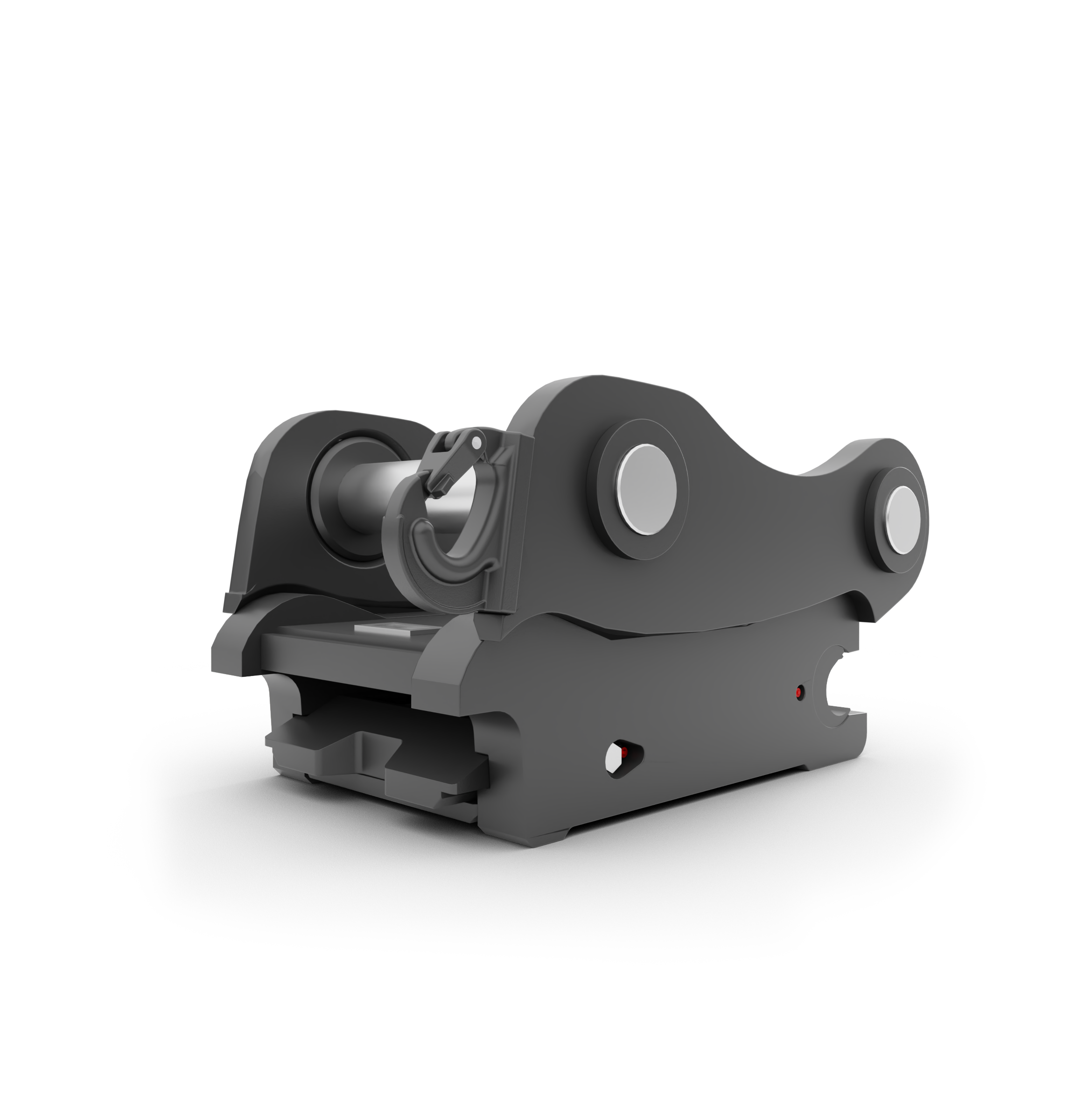

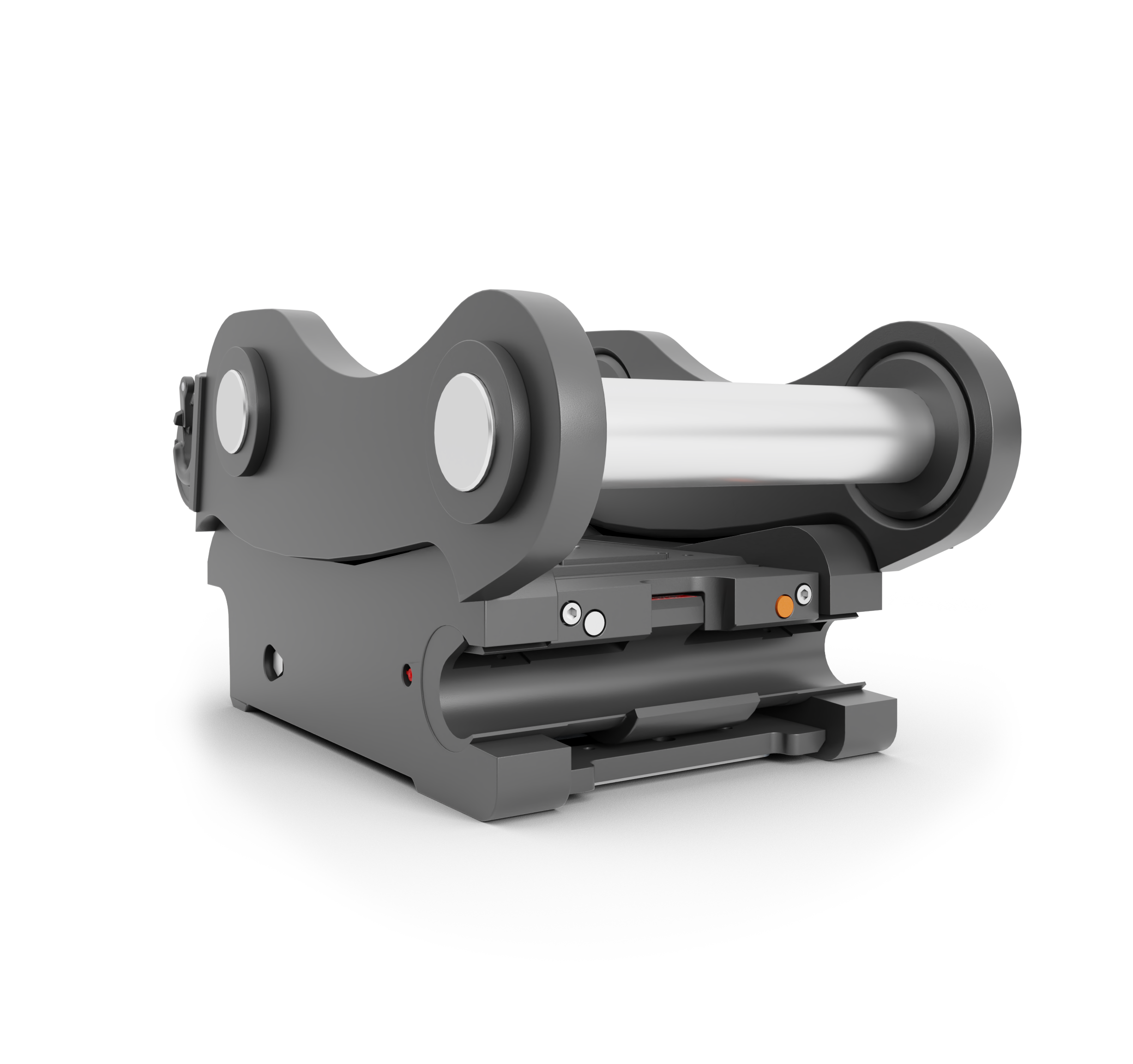

SMP 90 Coupler

This tiltable BM-quick coupler enables the use of equipment meant for wheel loaders. When using Movtec, the wheeled excavator achieves the highly appreciated functionalities of a backhoe loader while maintaining the great advantages of the wheeled excavator, which increases the machine's flexibility considerably.

EIK Demolition Boom is specially designed for high reach demolition works that require strength, stability, and precise control at extended working heights. The Demolition Boom consists of a reinforced boom and arm system engineered to be mounted on compatible excavators, allowing safe and efficient removal of structures in demanding demolition environments. The robust structural design ensures excellent balance and durability while supporting heavy demolition attachments such as crushers, breakers, and shears. Engineered for reliability and operator safety, EIK Demolition Boom solutions deliver consistent performance in controlled demolition applications. Customizable configurations are available to suit different excavator models, attachment types, and project requirements. SAFETY With the greater emphasis on work environment safety and stricter regulation in the industry, high reach demolition booms are fast becoming the choice attachment for demolishing old buildings, replacing the traditional and more accident-prone practice where excavators were lifted onto the building to carry out the highly risky tasks. The demolition boom has changed the entire concept of tearing down buildings, not only improving the overall safety standard, but also extending the working radius and reach of the front end attachment. CUSTOMIZED CONVERSION We do undertake entire turnkey solutions in which we convert your existing excavator to a full-fledged demolition equipment. The customized conversion is not restricted to the following: - Widening and lengthening of existing undercarriage. - Addition of an extra hydraulic control system. - Modification of cabin into articulating or tilting cabin. - Cabin protection guard system. - Integrated counterweight. - Full commissioning of newly converted machine. APPLICATIONS - Demolishing high-rise buildings and structures. - Typically attached to a hydraulic breaker, multi-processor or hydraulic shear. FEATURES - Heavy duty construction. - Design is simulated extensively, ensuring design integrity and detecting potential stress and fatigue points. - Modular joint on main boom for easy transportation. - All surfaces are shot blasted. - Uses marine grade epoxy paint as undercoat.

Monoboom with hydraulic modular joint Modification of standard monoboom into base boom and excavation front with hydraulically operated modular joint for connecting of excavation equipment and/ or High Reach Demolition(HRD) equipment. + Hydraulically operated modular joint for mounting of High Reach Demolition front (HRD front) and/or excavation front * operated by X3 function of base machine combined with selection switch in cab * one horizontal positioned double acting hydraulic locking cylinder intergrated in base boom + Hydraulic lines with hoses, ball valves and SAE flanges positioned at quick coupler for connecting of: * Arm cylinder 1 and 2 (HRD equipment) * Bucket cylinder * Additional hydraulic function for rotation (X3/MP) * Additional hydraulic function for hammer (X1/HP) + Hydraulic lines with Fastner multi coupler * Servo lines for safety valves of arm cylinders (3/8") * Drain line for attachment (1x 1/2") * Quick coupler function (2x 1/2") + SLI (Safe Load Indicator) * warning by claxon/light * indicating load versus stability Excavation monoboom equipment Modified monoboom into 2nd boom part with modular joint for connecting to base boom + Monoboom (complete) : ...00 mm & ...00mm Arm : .....0 mm + Modular joint for mounting to modular joint of baseboom. 2 positions * Excavation configuration * Straight boom configuration + Hydraulic lines with hoses with ball valves and flanges (SAE-type) for connecting to hydraulic lines at baseboom of; * Arm cylinder * Bucket cylinder * Additional hydraulic function for rotation * Additional hydraulic function for hammer + Hydraulic lines with Fastner multi coupler to hydraulic lines at baseboom * Servo lines for safety valves of arm cylinders (3/8") * Drain line for attachment (1x 1/2") * Quick coupler function (2x 1/2") + Cylinders (including bushings, pins and seals) of original ...brand name... make + Excluding (quick) couplers at arm for connecting hoses of attachment (e.g. breaker, crusher) + Basic transport rack for positioning/transport in disassembled position

- Completely newly manufactured high reach demolition front or digging front - Base boom with boom quick coupler system (optional) - Hydraulically tiltable cabin with safety guards - Side Impact Protection profiles at uppercarriage - Modification of hydraulic circuit and controls of base machine - 2D or 3D stability monitor systems - Machine operation weight up to 150t - Painting (primer and final colour) - CE Marking
