The ST28 FX is the largest tiltrotator, suitable for excavators of 22-30 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a single hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 770 Max breakout force kN (ISO) 180 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 139 Opening width (mm) 939

The ST32 FX is designed for excavators weighing between 28 till 32 tons. SMP’s tiltrotators are engineered for uncompromised durability, combining a robust build with a lightweight design that maximizes efficiency and maneuverability. With endless 360° rotation and up to 45° tilt, each unit is equipped with a high standard of features, providing exceptional flexibility and precision for even the most demanding tasks. Specifications Tilt angle max (°) 45 Weight from (kg) 776 Max breakout force kN (ISO) 213 Flow extra outlet (l/min) 65 Specifications Grip Weight (kg) 139 Opening width (mm) 939

The ST6 FX is small but powerful, suitable for excavators weighing between 3 and 6 tons. The SMP Tiltrotator improves the excavator’s capabilities by making it more flexible and efficient. High-precision work can be achieved without having to reposition the excavator. The tiltrotator’s 360° rotation and 45° tilting capabilities allow for a wide range of tasks from a single position. The tiltrotator can be mounted on the excavator directly or on a quick coupler. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 160 Max breakout force kN (ISO) 50 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 42/77 (S40/S45-50) Opening width (mm) 469/738 (S40/S45-50)

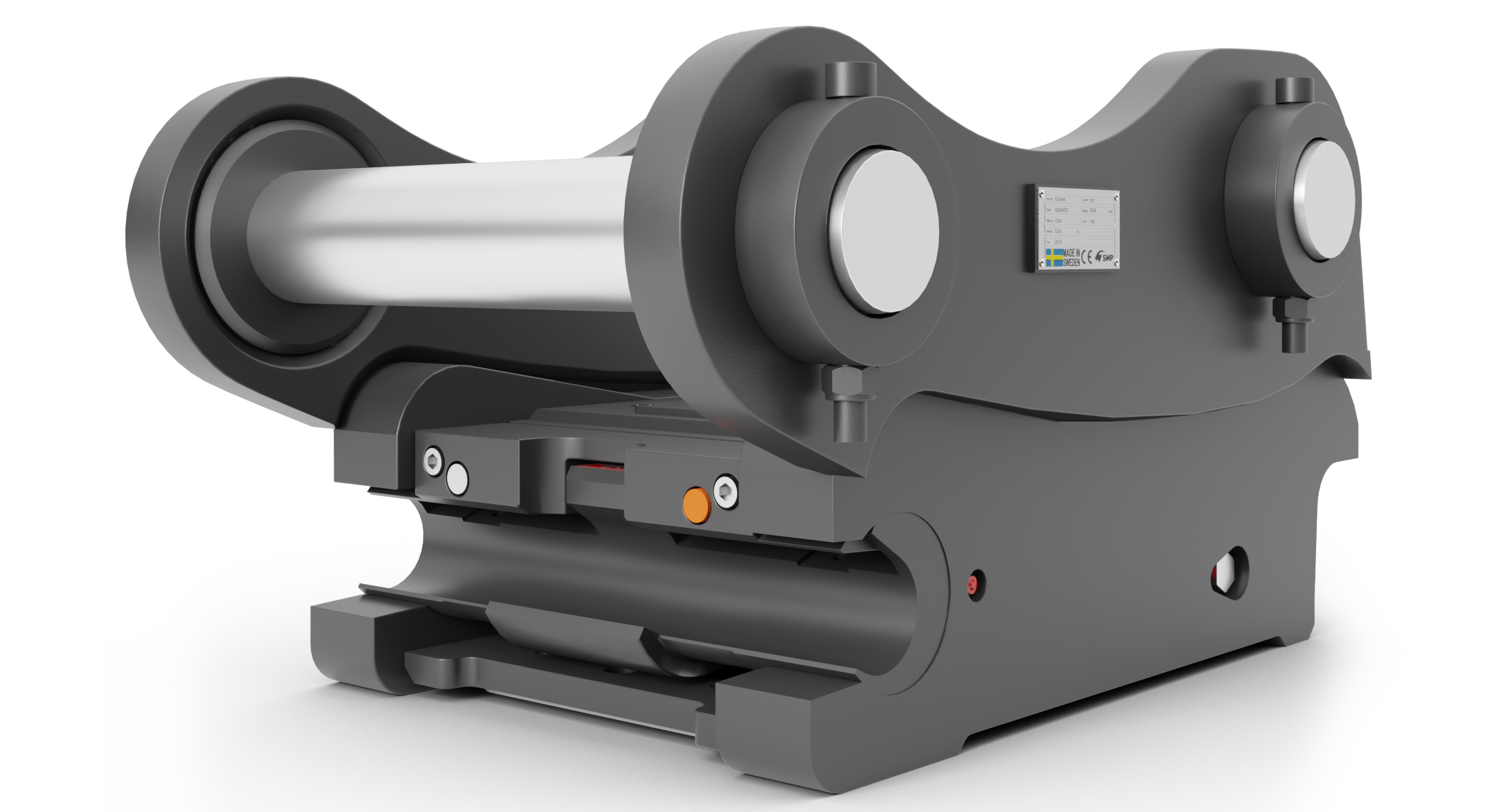

The SMP Hydraulic Quick Coupler has been designed for quick and easy tool changeover times and handling of heavy loads in harsh conditions. The simple but robust design ensures a long service life, even under extreme use. The coupler’s low built construction is designed to maintain the excavator’s original characteristics, such as break out force, digging angles and more. Specifications: Artnr: SMP105 Machine class (tonnes): 30-55 Weight (kg): ≈ 330

Our grading buckets have a sturdy and solid construction with conical ends and a large opening. The buckets are specially developed for use with our tiltrotators. We have both hydraulic and rigid grading buckets in many different sizes. Our grading buckets are very easy to use and maneuver, due to minimized corners for roller usage, a conical shape, and a 15° angle between the attachment and bucket bottom.

Reversible Quick Coupler for excavators

The ST15 FX is a robust tiltrotator designed for excavators of 10-16 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a larger hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 425 Max breakout force kN (ISO) 110 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 77/115 (S45-50/S60 Opening width (mm) 738/896 (S45-50/S60-70

The ST18 FX adds flexibility and efficiency to excavators of 14-18 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a single hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 553 Max breakout force kN (ISO) 130 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 115/139 (S60/70) Opening width (mm) 896/939

The ST10 FX is designed for excavators weighing between 6 and 10 tons. SMP’s tiltrotators are engineered for uncompromising durability, combining a robust construction with a lightweight design that maximizes efficiency and maneuverability. With 360° continuous rotation, Tilt angle up to 45°, each unit is equipped with a high standard of features, providing exceptional flexibility and precision for even the most demanding tasks. Specifications Tilt angle max (°) 45 Weight from (kg) 310 Max breakout force kN (ISO) 70 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 77 Opening width (mm) 738

The ST22 FX is a slightly larger but equally precise tiltrotator for excavators of 16-22 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a single hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 640 Max breakout force kN (ISO) 150 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 115/139 (S60/70) Opening width (mm) 896/939
