Lift tilt cabin ECHLE

Lift-Tilt Cabin – Maximum Flexibility & Comfort

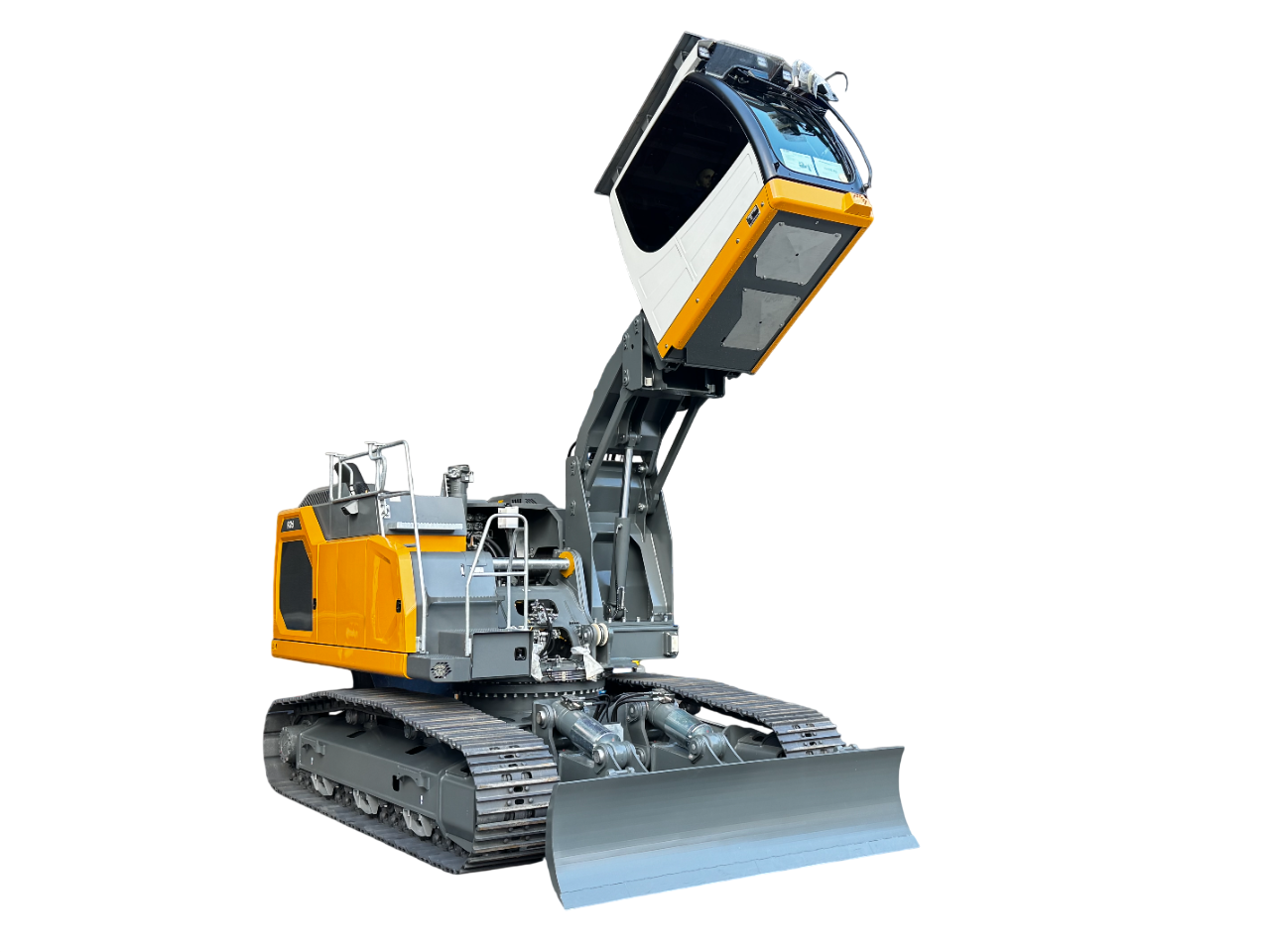

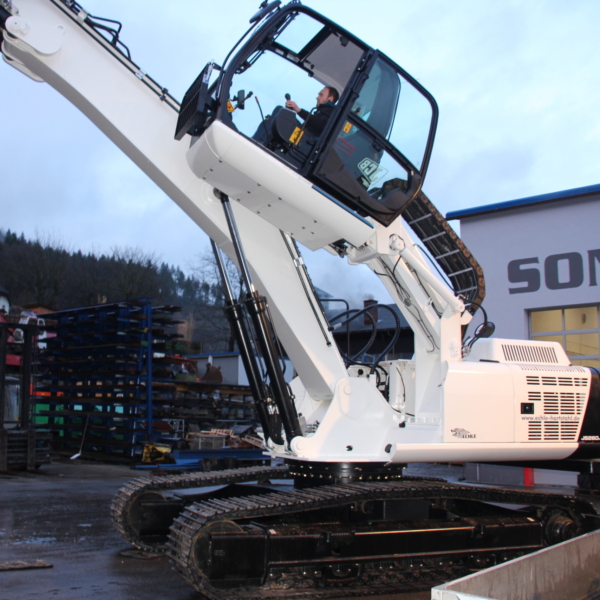

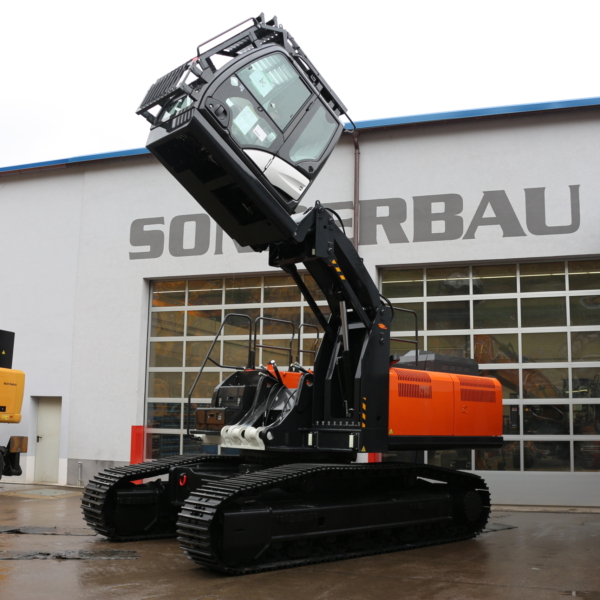

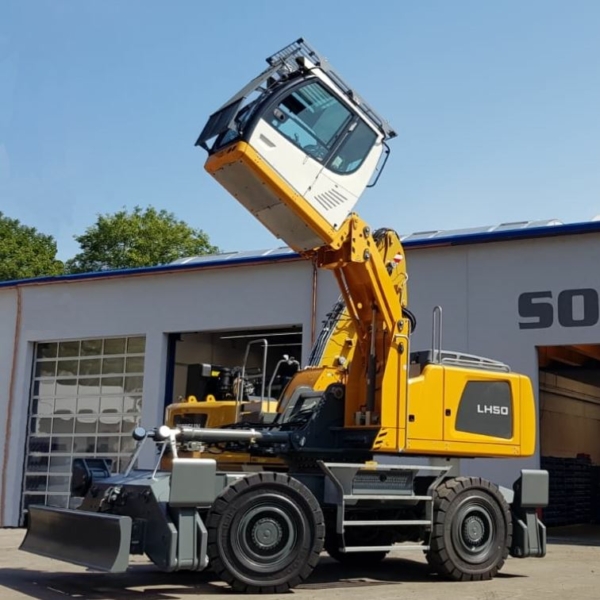

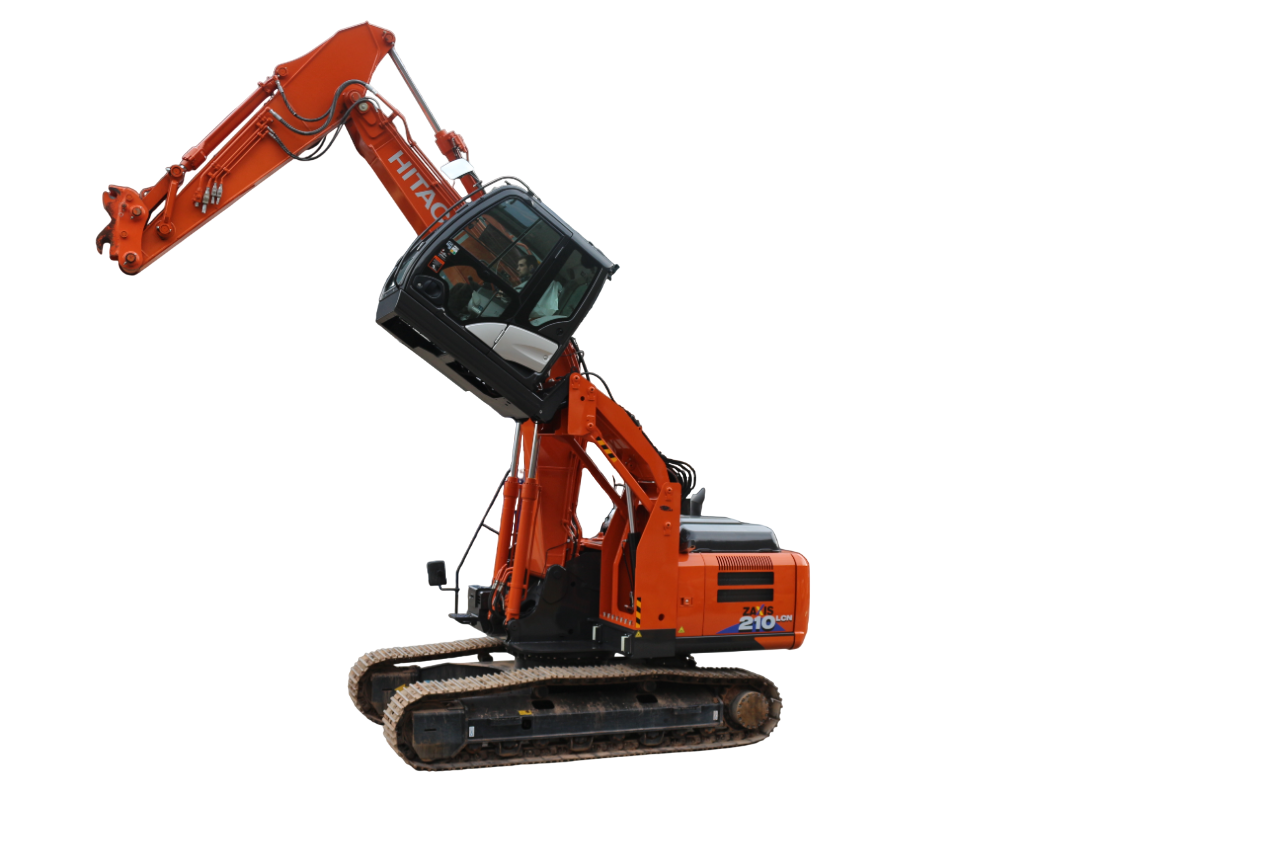

The lift-tilt cabin from ECHLE Hartstahl GmbH stands for innovative ergonomics, improved visibility and maximum safety in demanding job site operations. By combining an extended lifting function with an ergonomic tilting system, it significantly reduces operator strain while enhancing overall efficiency.

Ergonomic. Powerful. Safe.

Ergonomics & Comfort

The combination of height adjustment and stepless tilt function ensures an optimal working position in every situation. After modification, the cabin can be tilted steplessly up to approx. 30°. Hydraulic cylinders with load-holding valves guarantee safe and stable positioning at all times.

Optimized Visibility

With a lift height of approx. 2,300 mm, this provides outstanding all-round visibility – ideal for demolition, material handling and sorting applications.

Advanced Engineering

The lifting system operates via a hydraulic cylinder and lifting frame connected to the excavator undercarriage through parallel kinematics. All relevant lines are professionally adjusted and extended to ensure seamless machine integration.

Simple Operation

The system operates with medium pressure and requires no additional controls. It integrates easily into the existing hydraulic system of the machine.

Maximum Safety

An integrated emergency lowering function ensures the highest level of safety. It can be activated both from inside the cabin and from ground level.

Durability & Protection

All components are blasted, primed and painted to provide optimal corrosion protection and a high-quality finish.

Ideally Combined with PROTECTOR E4

For maximum protection, the lift-tilt cabin can be combined with the PROTECTOR E4 cab protection system, offering enhanced safety in heavy-duty applications.
