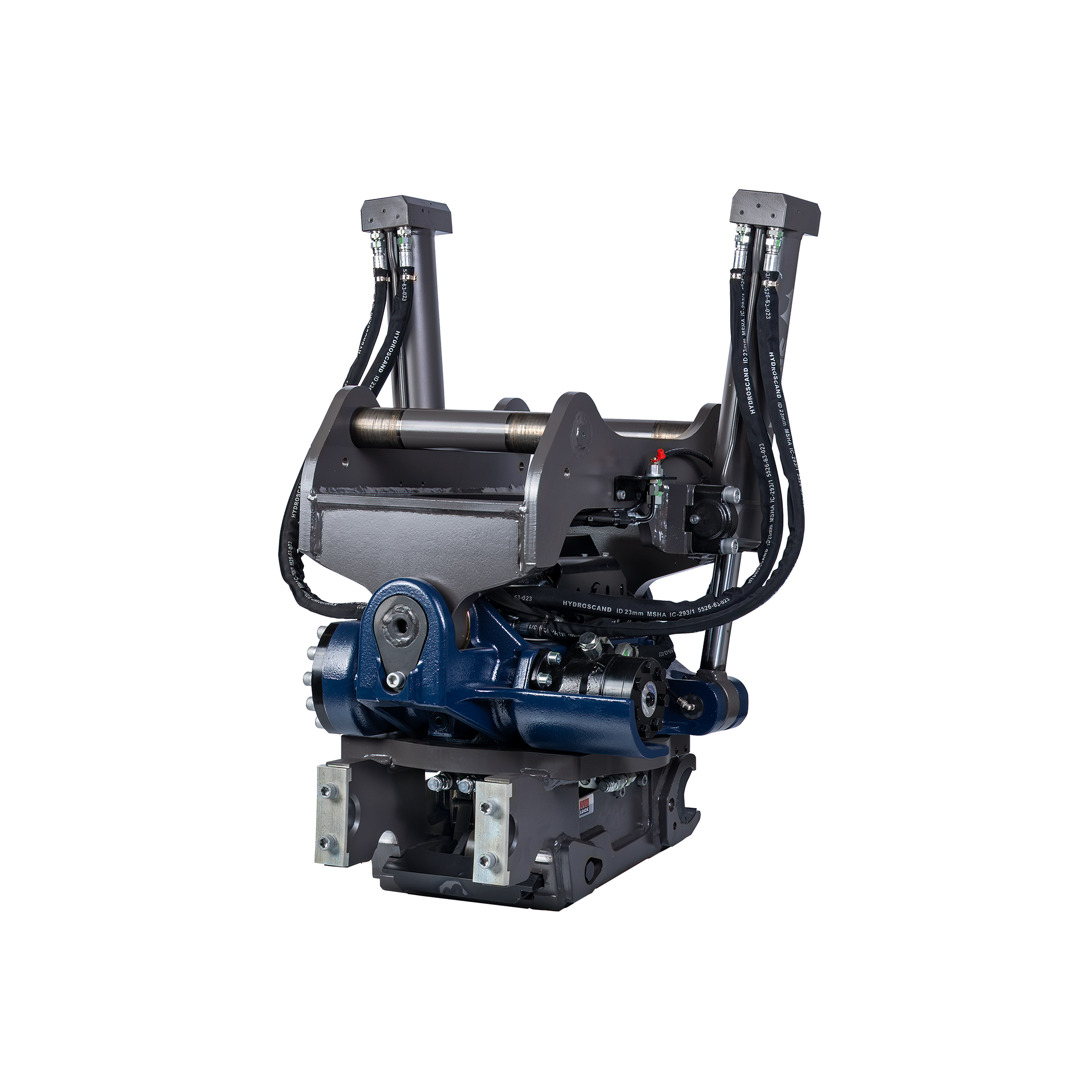

Tiltrotateur ST15 FX

The ST18 FX adds flexibility and efficiency to excavators of 14-18 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a single hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 553 Max breakout force kN (ISO) 130 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 115/139 (S60/70) Opening width (mm) 896/939

The ST22 FX is a slightly larger but equally precise tiltrotator for excavators of 16-22 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a single hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 640 Max breakout force kN (ISO) 150 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 115/139 (S60/70) Opening width (mm) 896/939

The ST6 FX is small but powerful, suitable for excavators weighing between 3 and 6 tons. The SMP Tiltrotator improves the excavator’s capabilities by making it more flexible and efficient. High-precision work can be achieved without having to reposition the excavator. The tiltrotator’s 360° rotation and 45° tilting capabilities allow for a wide range of tasks from a single position. The tiltrotator can be mounted on the excavator directly or on a quick coupler. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 160 Max breakout force kN (ISO) 50 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 42/77 (S40/S45-50) Opening width (mm) 469/738 (S40/S45-50)

The ST28 FX is the largest tiltrotator, suitable for excavators of 22-30 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a single hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 770 Max breakout force kN (ISO) 180 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 139 Opening width (mm) 939
