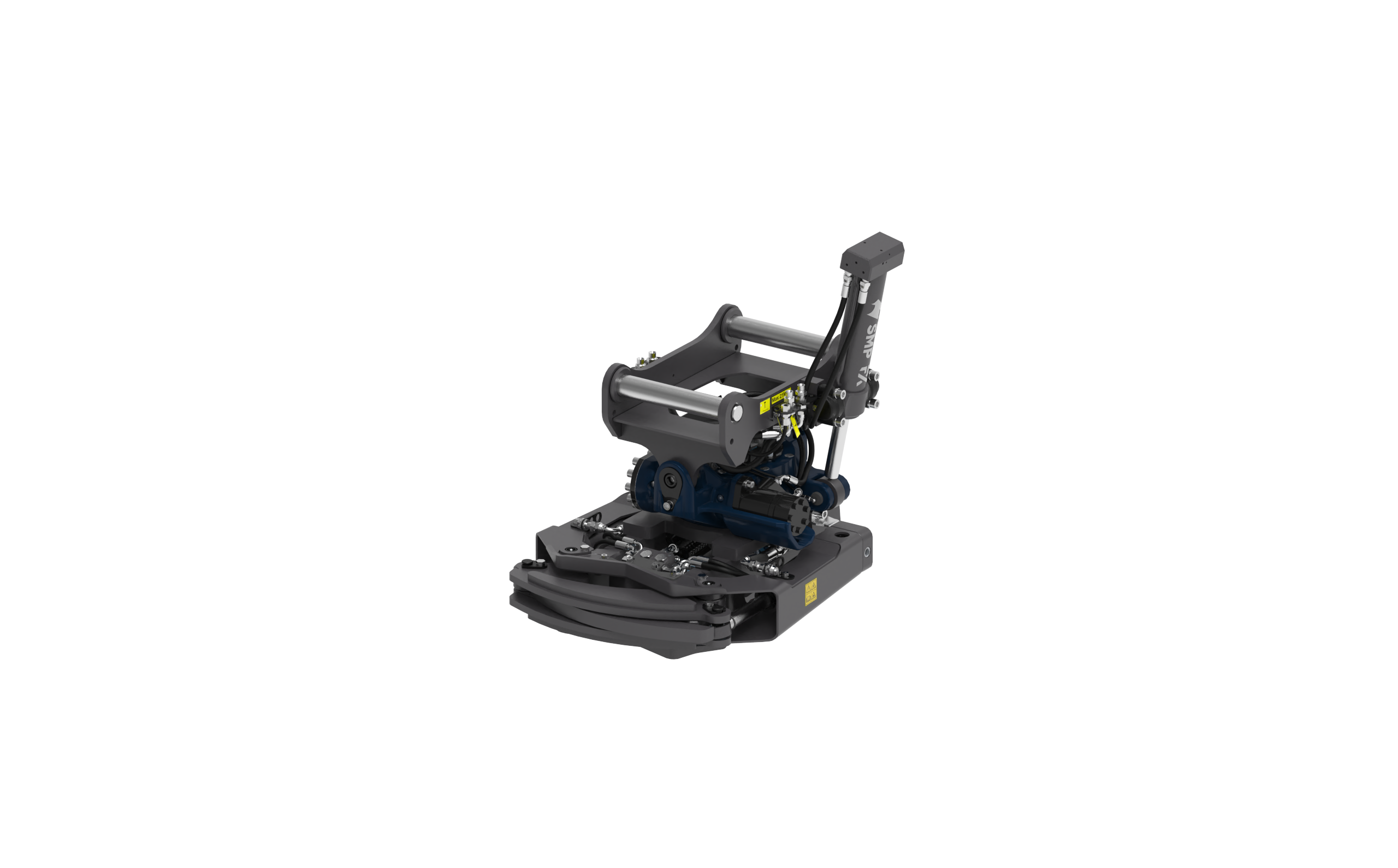

Tiltrotator ST6 FX

The ST15 FX is a robust tiltrotator designed for excavators of 10-16 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a larger hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 425 Max breakout force kN (ISO) 110 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 77/115 (S45-50/S60 Opening width (mm) 738/896 (S45-50/S60-70

The ST22 FX is a slightly larger but equally precise tiltrotator for excavators of 16-22 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a single hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 640 Max breakout force kN (ISO) 150 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 115/139 (S60/70) Opening width (mm) 896/939

The ST28 FX is the largest tiltrotator, suitable for excavators of 22-30 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a single hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 770 Max breakout force kN (ISO) 180 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 139 Opening width (mm) 939

The ST18 FX adds flexibility and efficiency to excavators of 14-18 tons. Improved hydraulics include a pressure relief valve directly on the motor, load holding valves on the cylinders, and a single hydraulic distribution block for improved efficiency. Available now with a high flow swivel, optimized for use with attachments requiring up to 200l/min of flow. An innovative electric swivel can be added for further flexibility, enabling the transmission of sensor or CAN signals. Equipped with a new built-in encoder, the tiltrotator can be integrated with machine guidance or control systems, enabling more efficient and precise operation. Specifications Tilt angle max (°) 45 Weight from (kg) 553 Max breakout force kN (ISO) 130 Flow extra outlet (l/min) 60-65 Specifications Grip Weight (kg) 115/139 (S60/70) Opening width (mm) 896/939
